02980900TXN | Littelfuse
Car fuse holder, BF2/MEGA, 500 A, 32 V, chassis mounting, 02980900TXN
Unit Price (€ / pc.)
14.2681 € *
Standard delivery time from the manufacturer is: 16 Weeks

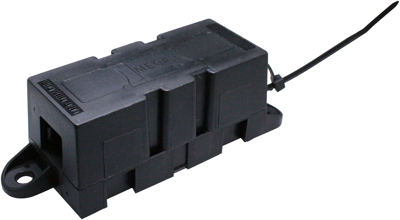

Fuse Holder for MEGA®, type Littelfuse.
Use with MEGA® fuses up to 500A. Ideal for battery and alternator connections and other heavy gauge cables requiring ultra high current protection. Includes protective cover. Features interconnecting pins on side of fuse block for secure multiple block configurations. Includes M8 threaded studs and hex nuts with lock washers.
Type: 02980900TXN
Rated current: 500 A
Lenght: 119,4 mm
Widht: 38,1 mm
Height: 38,9 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| For Fuse | BF2/MEGA | |
| Version | closed | |
| Connection | screw connection | |
| Type of mounting | chassis mounting | |
| Rated current | 500 A | |
| Rated voltage | 32 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
