GUO40-16NO1 | Littelfuse

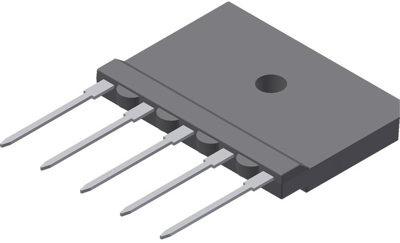

Littelfuse bridge rectifier, 1600 V (RRM), 70 A, GUFP, GUO40-16NO1
Order No.: 74P1234
EAN: 4099891780999
MPN:
GUO40-16NO1
Unit Price (€ / pc.)
19.516 € *
Standard delivery time from the manufacturer is: 16 Weeks
Bridge rectifier, GUO40-16NO1, Littelfuse
Rectifier bridge, a planar passivated chip, offers low forward voltage drop, and easy mounting with one screw, enabling space and weight savings.
Applications
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | GUFP | |
| Rated current | 70 A | |
| Version | 3-phase | |
| min. operating temperature | -40 °C | |
| Voltage V RRM (peak reverse voltage) | 1600 V | |
| max. operating temperature | 175 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
