157.5701.6101 | Littelfuse
Strip fuse, 100 A, 48 V, white, (L x W x H) 82 x 22 x 10.5 mm, 157.5701.6101
Unit Price (€ / pc.)
8.1991 € *
Available: 27 pcs.
Available in 4 Days: 100 pcs. - if ordered today
Total Price:
8.20 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1991 €
10 pcs.
7.5922 €
50 pcs.
6.4379 €
*incl. VAT plus shipping costs
Subject to prior sale
Strip fuse, 157.5701.6101, Littelfuse

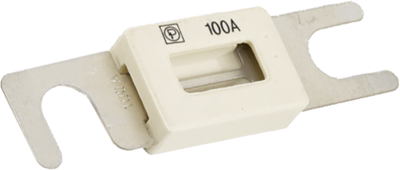

The 157.5701.6101 is a housed fuse strip for battery-powered vehicles, with window for visual inspection of melting element.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | strip fuse | |
| Breaking capacity | 600 A | |
| Rated current | 100 A | |
| Colour | white | |
| Rated voltage | 48 V | |

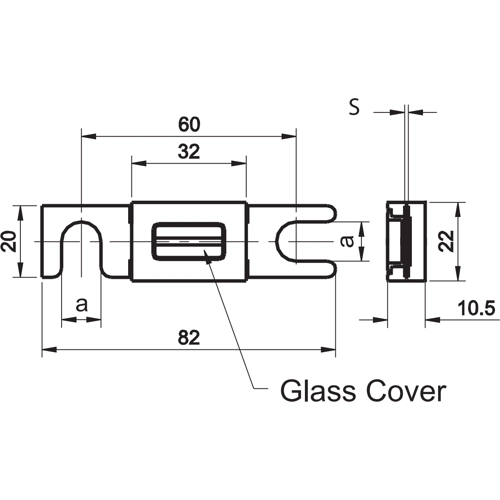

| Length | 82 mm | |
| Width | 22 mm | |
| Height | 10.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
