153.5631.6121 | Littelfuse
Screw lock, 125 A, 32 V, pink, (L x W x H) 42 x 12 x 7.8 mm, 153.5631.6121
Unit Price (€ / pc.)
3.3320 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
33.32 € *
Price list
Quantity
Price per unit*
10 pcs.
3.3320 €
50 pcs.
3.0940 €
100 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale

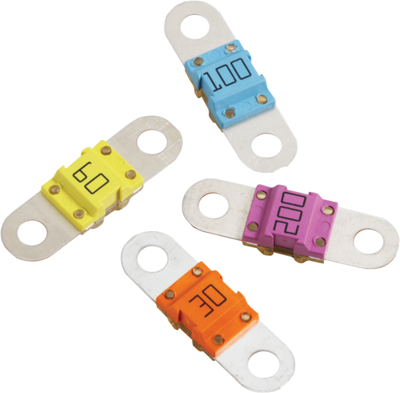

High current fuse, 153.5631.6121, Littelfuse
This fuse is rated at 32 V and offers a bolt-on fuse for high current wiring protection. It features a transparent housing material for easy detection of blown fuses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | screw lock | |
| Breaking capacity | 2 kA | |
| Rated current | 125 A | |
| Colour | pink | |
| Rated voltage | 32 V | |

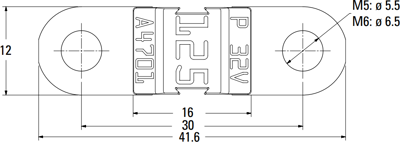

| Length | 42 mm | |
| Width | 12 mm | |
| Height | 7.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
