153.5631.5301 | Littelfuse

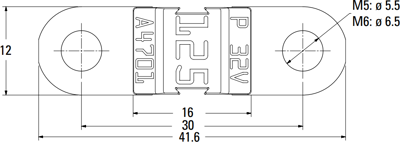

Screw lock, 30 A, 32 V, orange, (L x W x H) 42 x 12 x 7.8 mm, 153.5631.5301
Unit Price (€ / pc.)
5.4740 € *
Available: 1 pcs.
Available in 4 Days: 10 pcs. - if ordered today
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4740 €
10 pcs.
3.9032 €
100 pcs.
3.3439 €
500 pcs.
2.9036 €
1000 pcs.
2.6418 €
*incl. VAT plus shipping costs
Subject to prior sale

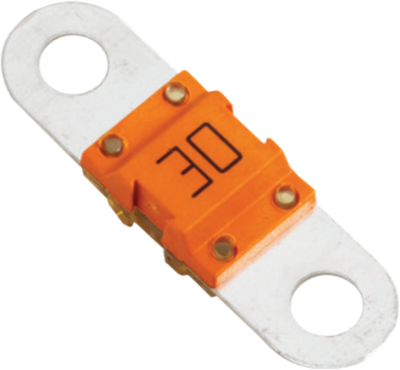

High current fuse, 153.5631.5301, Littelfuse
This fuse is rated at 32 V and offers a bolt-on fuse for high current wiring protection. It features a transparent housing material for easy detection of blown fuses.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | screw lock | |
| Breaking capacity | 1 kA | |
| Rated current | 30 A | |
| Colour | orange | |
| Rated voltage | 32 V | |
| Length | 42 mm | |
| Width | 12 mm | |
| Height | 7.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361010 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
