0297020.WXNV | Littelfuse
Automotive flat fuse, 20 A, 32 V, yellow, (L x W x H) 10.9 x 3.8 x 8.8 mm, 0297020.WXNV
Unit Price (€ / pc.)
0.2178 € *
Standard delivery time from the manufacturer is: 22 Weeks

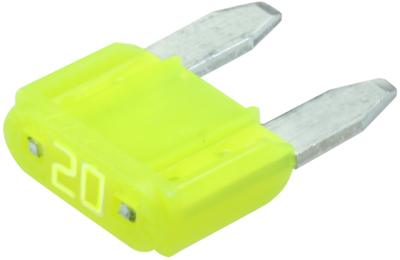

Mini blade fuse, 0297020.WXNV, Littelfuse
The MINI® Fuse is the standard for vehicle circuit protection. Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI® Fuse of recommended choice for protection.
Technical Data
- Current: 20 A
- Color: yellow
- Voltage rating: 32 V

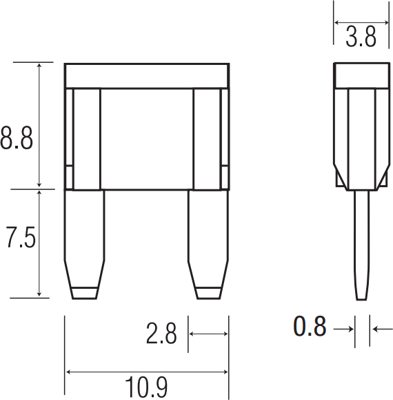

- Dimensions (L/H/W): 10.9/8.8/3.8 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | automotive flat fuse | |
| Breaking capacity | 1 kA | |
| Rated current | 20 A | |
| Colour | yellow | |
| Rated voltage | 32 V | |
| Length | 10.9 mm | |
| Width | 3.8 mm | |
| Height | 8.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Original Packaging | Bag with 3,000 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
