0297015.WXNV | Littelfuse
Automotive flat fuse, 15 A, 32 V, blue, (L x W x H) 10.9 x 3.8 x 8.8 mm, 0297015.WXNV
Unit Price (€ / pc.)
0.3808 € *
Available: 514 pcs.
Available in 4 Days: 9,527 pcs. - if ordered today
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.2713 €
100 pcs.
0.2321 €
500 pcs.
0.2011 €
1000 pcs.
0.1833 €
*incl. VAT plus shipping costs
Subject to prior sale

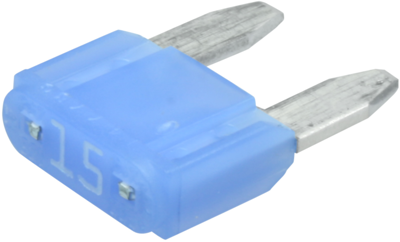

Mini blade fuse, 0297015.WXNV, Littelfuse
The MINI® Fuse is the standard for vehicle circuit protection. Its miniature design meets the need for more circuits to be protected while utilizing less space, and its ability to cope with high temperatures in adverse environments makes the MINI® Fuse of recommended choice for protection.
Technical Data
- Current: 15 A
- Color: blue
- Voltage rating: 32 V

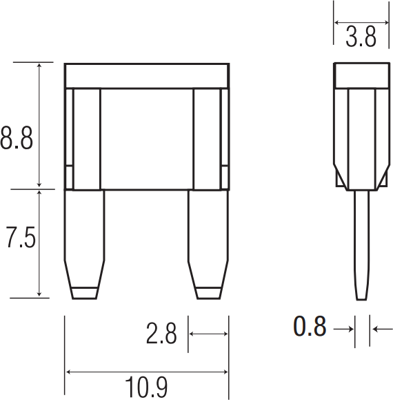

- Dimensions (L/H/W): 10.9/8.8/3.8 mm
Technical specifications
| Version | automotive flat fuse | |
| Breaking capacity | 1 kA | |
| Rated current | 15 A | |
| Colour | blue | |
| Rated voltage | 32 V | |
| Length | 10.9 mm | |
| Width | 3.8 mm | |
| Height | 8.8 mm |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85361010 |
| Original Packaging | Bag with 3,000 pieces |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
