0287010.PXCN | Littelfuse
Automotive flat fuse, 10 A, 32 V, red, (L x W x H) 19.1 x 5.1 x 18.8 mm, 0287010.PXCN
Unit Price (€ / pc.)
0.4403 € *
Available: 1,588 pcs.
Available in 4 Days: 2,230 pcs. - if ordered today
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.3213 €
100 pcs.
0.2725 €
500 pcs.
0.2380 €
1000 pcs.
0.2142 €
*incl. VAT plus shipping costs
Subject to prior sale

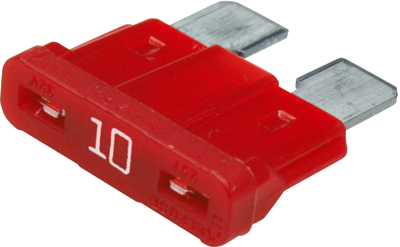

Blade fuse, 0287010.PXCN, Littelfuse
Developed by Littelfuse for the automotive industry, the ATOF® fuse has become the original equipment circuit protection standard for foreign and domestic automobiles and trucks.
Technical Data
- Current: 10 A
- Color: red
- Voltage rating: 32 V

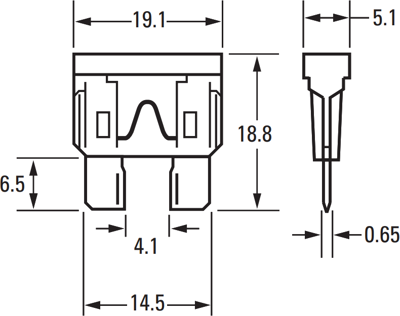

- Dimensions (L/H/W): 19.1/18.8/5.1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | automotive flat fuse | |
| Breaking capacity | 1 kA | |
| Rated current | 10 A | |
| Colour | red | |
| Rated voltage | 32 V | |
| Length | 19.1 mm | |
| Width | 5.1 mm | |
| Height | 18.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
