LTS4301WC | LITE-ON

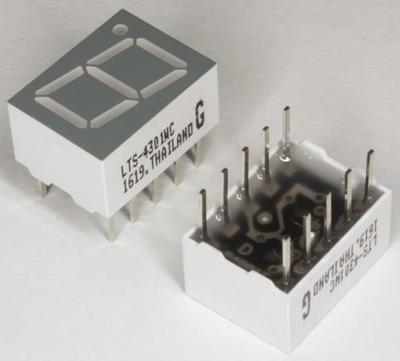

7-Segment Display LTS4301WC
Active
Total price
(
1.7969 €
* / pcs.)
1.80 €
Available: 93 pcs.
Quantity
Price per unit*
1 pcs.
1.7969 €
50 pcs.
1.6303 €
100 pcs.
1.4756 €
250 pcs.
1.4042 €
500 pcs.
1.3328 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by LITE-ON at Bürklin Elektronik
7-segment displays, type LTS-4.
Font height: 10 mm. Package dimensions: 12.9 x 9.7 x 7.0 mm.
Technical attributes (type, emission color, wavelength, luminosity (min./typical), common connection): LTS-4301WC, red, 660 nm, 200/650 µcd, cathode
Technical specifications
| Connection | cathode | |
| Number of positions | 1 | |
| Rated current | 0.005 A | |
| Width | 9.7 mm | |
| Colour | red | |
| Height | 7 mm | |
| Length | 12.9 mm | |
| Light intensity min. | 0.0002 cd | |
| Light intensity typ. | 0.00065 cd | |
| Assembly | THT | |
| Wavelength | 0.66 µm | |
| Character height | 10 mm |
Logistics
| Country of origin | TH |
| Customs tariff number | 85414100 |
| Original Packaging | Bar with 36 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
