LTV-356T | LITE-ON

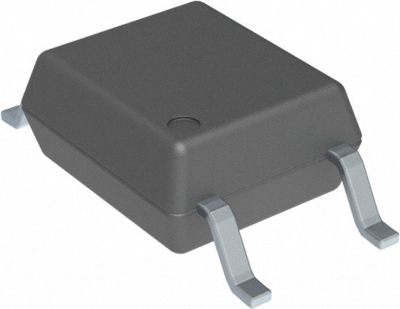

LITE-ON optocoupler, SOP-4, LTV-356T
Order No.: 66S136
MPN:
LTV-356T
Unit Price (€ / pc.)
0.1035 € *
Standard delivery time from the manufacturer is: On Request
Optocoupler, LTV-356T, LITE-ON
Optocoupler, 50 to 600 %, SO4, LTV-356T.
Features
- High input-output isolation voltage
- High collector-emitter voltage
- RoHS Compliance
Applications
- Hybrid substrates that require high density mounting
- Programmable controllers
- System appliance, measuring instruments
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Fall time | 3 s | |
| Isolation voltage | 3.75 kV | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Rise time | 4 s | |
| Number of channels | 1 | |
| Enclosure | SOP-4 | |
| Output current | 50 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
