LTC1485CS8#PBF | Linear Technology

Differential Driver, LTC1485CS8#PBF, Linear Technology

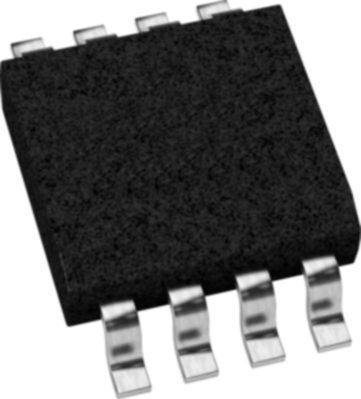

The LTC1485CS8#PBF is a low power differential bus/line Transceiver designed for multipoint data transmission standard RS485 applications with extended common-mode range. The CMOS with Schottky design offers significant power savings over its bipolar counterpart without sacrificing ruggedness against overload or ESD damage. The driver and receiver feature three-state outputs with the driver outputs maintaining high impedance over the entire common-mode range. Excessive power dissipation caused by bus contention or faults is prevented by a thermal shutdown circuit which forces the driver outputs into a high impedance state. I/O pins are protected against multiple ESD strikes of over ±10kV. The receiver has a fail-safe feature which guarantees a high output state when the inputs are left open.

Features

• Thermal shutdown protection
• Power-up/down glitch-free driver outputs
• Driver maintains high impedance in three-state or with power OFF
