LT1115CN8#PBF | Linear Technology

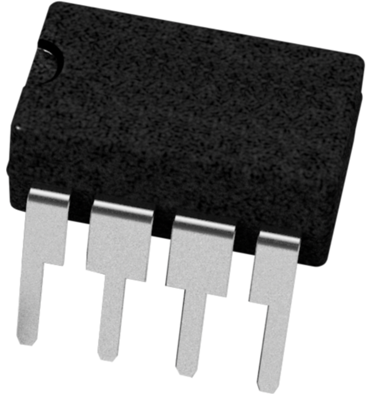

Single ultralow noise audio amplifier, DIP-8, LT1115CN8#PBF
Unit Price (€ / pc.)
7.7707 € *
Standard delivery time from the manufacturer is: 2 Weeks
Operational amplifier, LT1115CN8#PBF, LINEAR
The LT1115CN8#PBF is the lowest noise audio operational amplifier available. This ultralow noise performance (0.9nV/√Hz at 1kHz) is combined with high slew rates (>15V/µs) and very low distortion specifications.
Features
- Voltage and current noise
- Slew rate
Applications
- Very low noise instrumentation amplifier
- Infrared detector amplifier
- Hydrophone amplifier
- Low distortion oscillator
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DIP-8 | |
| Assembly | THT | |
| Number of channels | 1 | |
| Version | ultralow noise audio amplifier | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
