LT1617ES5#TRMPBF | Linear Technology
IC, LT1617ES5#TRMPBF
Unit Price (€ / pc.)
5.5811 € *
Standard delivery time from the manufacturer is: 2 Weeks
DC/DC Converter, LT1617ES5#TRMPBF, Linear Technology

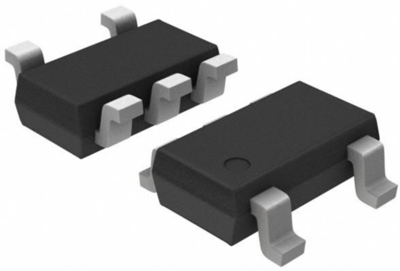

The LT1617ES5#TRMPBF is a micropower inverting DC/DC converter in a 5-lead SOT-23 package. It features a quiescent current of only 20 µA at no load, which further reduces to 0.5 µA in shutdown. A current limited, fixed off-time control scheme conserves operating current, resulting in high efficiency over a broad range of load current.
Features
- Low Quiescent Current
- Uses Small Surface Mount Components
Applications
- LCD Bias
- Handheld Computers
- Battery Backup
- Digital Cameras
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOT-23 | |
| Output current | 300 mA | |
| Assembly | SMD | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Input voltage | 15 V | |
| Input voltage AC | 1.2-15 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | US |
| MSL | MSL 1 |
| Original Packaging | Reel with 500 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
