LT1171CT#PBF | Linear Technology
Voltage regulators, 1.5 V, 1.244 kV, 40 V

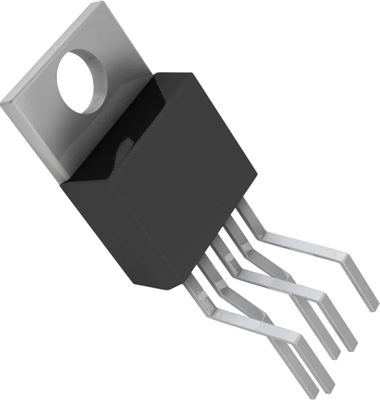

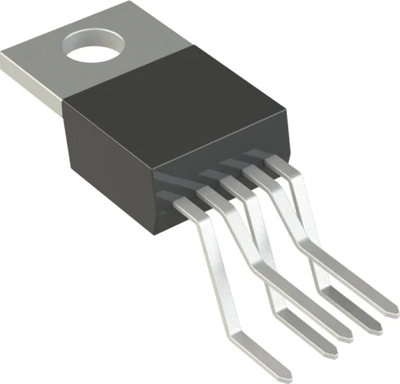

High Efficiency Switching Regulator, LT1171CT#PBF, Linear Technology
The LT1171CT#PBF is a monolithic high-power switching regulator. It can be operated in all standard switching configurations including buck, boost, flyback, forward, inverting, and “Ćuk.” A high-current, high-efficiency switch is included on the die, along with all oscillator, control, and protection circuitry. This makes the LT1171CT#PBF extremely easy to use and provides “bust-proof” operation similar to that obtained with 3-pin linear regulators. The LT1171CT#PBF has many unique features not found even on the vastly more difficult-to-use low-power control chips presently available. It uses adaptive antisat switch drive to allow very wide-ranging load currents with no loss in efficiency. An externally activated shutdown mode reduces total supply current to 50μA typically for standby operation.
Features
- Very Few External Parts Required
- Self-Protected Against Overloads
- Operates in Nearly All Switching Topologies
- Flyback-Regulated Mode Has Fully Floating Outputs
- Can Be Externally Synchronized
Applications
- Battery Upconverter
- Fully Floating Multiple Outputs
| Filter | Property | Value |
|---|---|---|
| Enclosure | TO-220 | |
| Assembly | THT | |
| Input voltage AC | 3-40 V | |
| Output voltage DC | 1.24-65 V | |
| Output current | 2.5 A | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 100 °C | |
| Input voltage | 40 V |
| Property | Value |
|---|---|
| Country of origin | US |
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85423390 |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
