LT1616ES6#TRMPBF | Linear Technology

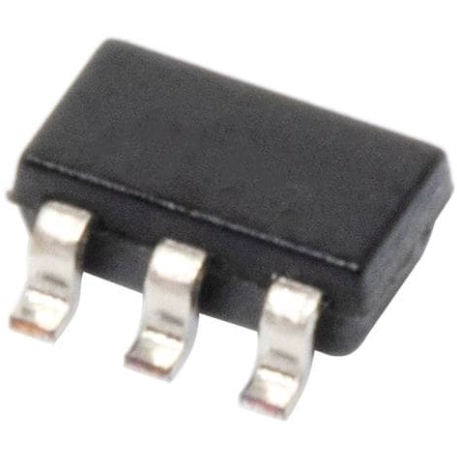

Switching regulator IC, 1.25-21.75 V, 600 mA, SOT-23, Linear Technology LT1616ES6#TRMPBF
NCNR (non cancelable / non returnable)
Step-Down Switching Regulator, LT1616ES6#TRMPBF, Linear Technology
The LT1616ES6#TRMPBF is a current mode PWM step-down DC/DC converter with internal 0.6A power switch, packaged in a tiny 6-lead SOT-23. The wide input range of 3.6V to 25V makes the LT1616ES6#TRMPBF suitable for regulating a wide variety of power sources, from 4-cell batteries and 5V logic rails to unregulated wall transformers and lead-acid batteries. Its high operating frequency allows the use of tiny, low cost inductors and ceramic capacitors. With its internal compensation eliminating additional components, a complete 400 mA step-down regulator fits onto 0.15 square inches of PC board area. The constant frequency current mode PWM architecture and stable operation with ceramic capacitors results in low, predictable output ripple.
Features
- Uses Tiny Capacitors and Inductors
- Internally Compensated
Applications
- Wall Transformer Regulation
- Battery-Powered Equipment
- Distributed Supply Regulation
- Digital Cameras
| Filter | Property | Value |
|---|---|---|
| Input voltage | 25 V | |
| Enclosure | SOT-23 | |
| Output voltage DC | 1.25-21.75 V | |
| Assembly | SMD | |
| max. operating temperature | 70 °C | |
| Output current | 600 mA | |
| Input voltage AC | 3.6-25 V | |
| min. operating temperature | 0 °C |
| Property | Value |
|---|---|
| MSL | MSL 1 |
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85423390 |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
