MA500-1 | LINDSTRÖM
Torque screwdriver, 0.1-0.8 Nm, 1/4 inch, L 138 mm, 200 g, MA500-1
Order No.: 06L6256
EAN: 7314150112395
MPN:
MA500-1
This item is no longer available.
As an alternative, we recommend the following item:
Torque screwdriver, 0.16-0.8 Nm, 1/4 inch, L 138 mm, 200 g, MA500-1A
Order No.: 06L9579
Manufacturer: LINDSTRÖM
per pc. 272.51 € *
Torque drivers, type Lindstrom MA 500-.
Compact, ergonomic and highly accurate ESD micro version. Torque is adjusted turning the knurled knob at the end of the handle, and displayed in N/cm on a linear scale on the handle; Accuracy: ±6.0 %, 1/4" bit receptacle. Made of stainless steel, suitable for all standard drive bits. Table data: type, torque range, dimensions

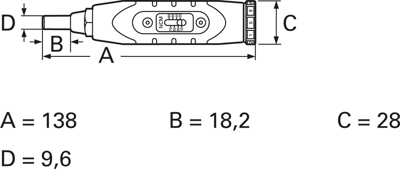

Type: MA 500-1, 10 to 80 N/cm, A 138, B 18.2, C 28, D 9.6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Weight | 200 g | |
| Torque range | 0.1-0.8 Nm | |
| Accuracy | ±6 % | |
| Length | 138 mm | |
| Size | 1/4 inch | |
| Version | torque screwdriver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 82054000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | not_relevant |
