RX 8152 | LINDSTRÖM

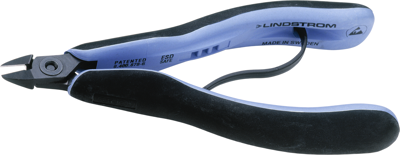

ESD side cutter, 138 mm, 73 g, cut capacity (1.25 mm/–/–/–), RX 8152
Unit Price (€ / pc.)
102.0187 € *
Available: 1 pcs.
Available in 5 Days: 233 pcs. - if ordered today
Diagonal cutters, type Lindstrom Rx 81.
With oval nose. The handle casing is protected against electrostatic charge, not conductive in the conductive range, conductive in the dissipative range, however, non-insulated. Not suitable for working on live voltage electrical equipment. Practical operation with the tool is ensured by a resistance-reducing and adjustable spring opener.
With large nose, type Rx 815.
Dimensions: A 138.0, B 13.0, C 12.5, D 6.0, F 1.2 mm.
Technical attributes (type, cutting edge shape, cutting capacity for copper wire): Rx 8152, without facet, 0.2 to 1.25 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | steel | |
| Version | side cutter | |
| Weight | 73 g | |
| Cutting capacity (soft) | 1.25 mm | |
| Cutting edge | without facet | |
| ESD protection | Yes | |
| Length | 138 mm | |
| 1000V Insulated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 82032000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
