RX 8151 | LINDSTRÖM
ESD side cutter, 138 mm, 73 g, cut capacity (–/–/1.6 mm/–), RX 8151
Unit Price (€ / pc.)
74.9105 € *
Available: 1 pcs.
Available in 5 Days: 116 pcs. - if ordered today

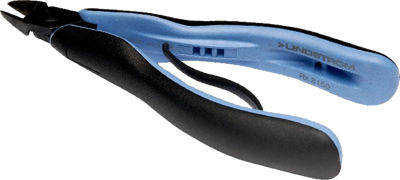

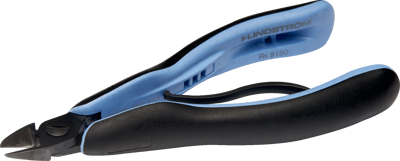

Side cutter, RX 8151, LINDSTRÖM
Flush Precision Cut Diagonal Cutter with Oval Head.
Features
- Two-component ESD safe Ergo handles: Thermoplastic surface on tough polypropylene provides superior grip
- The specified cutting capacity applies to copper wire

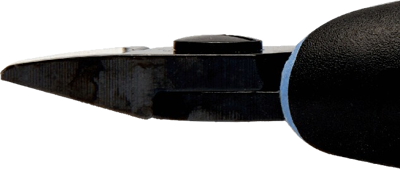

- Precision induction hardened cutting edges 63–65 HRC

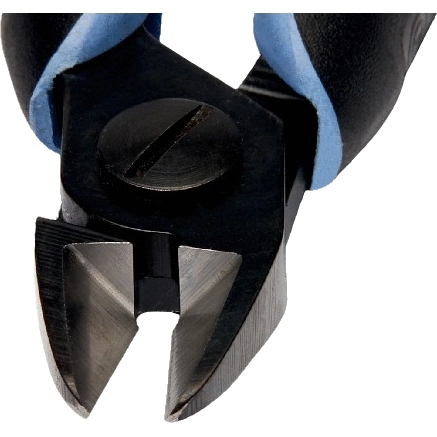

- Friction-reducing screw connection, which increases the line accuracy of the cutting edges
- ESD-safe handles made from synthetic two-component material
- Opening spring that limits the tension during the working period and can be set to three different positions or removed
- Particularly suitable for working on wire harnesses and for assembly tasks on printed circuit boards
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cutting edge | with facet | |
| 1000V Insulated | No | |
| Version | side cutter | |
| Material | steel alloy | |
| ESD protection | Yes | |
| Weight | 73 g | |
| Length | 138 mm | |
| Cutting capicity (hard) | 1.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
