RX 8145 | LINDSTRÖM

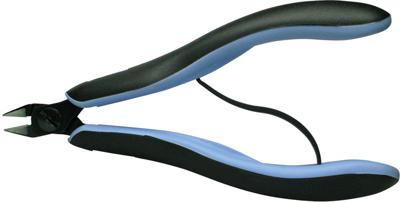

ESD side cutter, 133.5 mm, 68 g, cut capacity (1 mm/–/–/–), RX 8145
Unit Price (€ / pc.)
98.6510 € *
Standard delivery time from the manufacturer is: 2 Weeks
Diagonal cutters, type Lindstrom Rx 814.
With pointed nose. The handle casing is protected against electrostatic charge, not conductive in the conductivity range and conductive in the dissipative range, however, non-insulated. Not suitable for life voltage electrical equipment. Practical operation of the tool is ensured with a resistance-reducing and adjustable spring opener; Dimensions: A 135.5, B 10.5, C 10, D 6.0, F 0.8 mm.
Technical attributes (type, cutting edge shape, cutting capacity copper wire): Rx 8145, without facet, 0.1 to 1.0 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cutting edge | without facet | |
| 1000V Insulated | No | |
| Version | side cutter | |
| Material | steel | |
| ESD protection | Yes | |
| Weight | 68 g | |
| Cutting capacity (soft) | 1 mm | |
| Length | 133.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
