RX 8140 | LINDSTRÖM

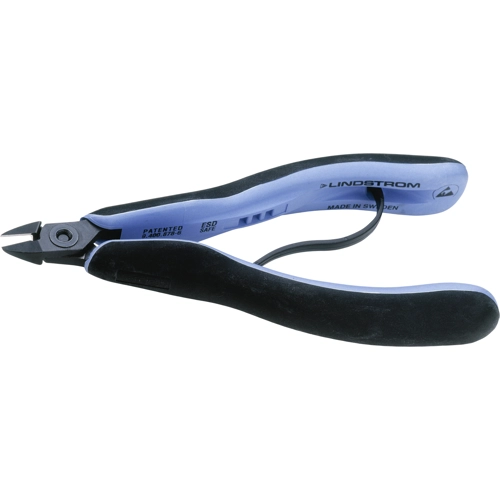

ESD side cutter, 135.5 mm, 70 g, cut capacity (1.25/–/0.2 mm/–), RX 8140
As a private customer, you can buy this item as soon as we have it back in stock.
Diagonal cutters, type Lindstrom Rx 81.
With oval nose. The handle casing is protected against electrostatic charge, not conductive in the conductive range, conductive in the dissipative range, however, non-insulated. Not suitable for working on live voltage electrical equipment. Practical operation with the tool is ensured by a resistance-reducing and adjustable spring opener.
With slim nose, type Rx 814.
Dimensions: A 135.5, B 10.5, C 10.0, D 6.0, F 0.8 mm.
Technical attributes (type, cutting edge shape, cutting capacity for copper wire): Rx 8140, with facet, 0.2 to 1.25 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ESD protection | Yes | |
| Cutting edge | with facet | |
| Cutting capacity (soft) | 1.25 mm | |
| Material | steel | |
| Weight | 70 g | |
| Version | side cutter | |
| 1000V Insulated | No | |
| Length | 135.5 mm | |
| Cutting capicity (hard) | 0.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 82032000 |
| Country of origin | ES |
Compliance
| Property | Value |
|---|---|
| RoHS conform | not_relevant |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
