376077 | Limitor
Temperature switch, Form B (N/C), 55 °C, 2.5 A, 250 V, 376077
No longer in assortment
Unit Price (€ / pc.)
2.3443 € *
Available: 270 pcs.

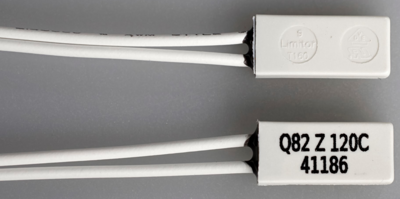

Thermal switch, 376077, Limitor
Temperature switch LIM-Q 8 2 A 55 5 100 10A, with electrical latching, wire: insulated, cut-off temperature: 55°, tolerance: ±5 K, wire length: 100 mm - 10 mm stripped.
Features
- Mould-proof housing
- Excellent thermal conduction characteristics due to homogenous constructional size
- Permanent cut-out by self-holding
- Very compact constructional size
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2.5 A | |
| Resetting | electric | |
| Assembly | strand connection | |
| Latching switching function | Form B (N/C) | |
| Nominal temperature | 55 °C | |
| Rated voltage | 250 V | |
| Tolerance | ±5 K |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Original Packaging | Bulk with 500 pieces |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
