GBU6B | LGE
LGE bridge rectifier, 70 V, 100 V (RRM), 6 A, SIL, GBU6B
This item is no longer available.
As an alternative, we recommend the following item:

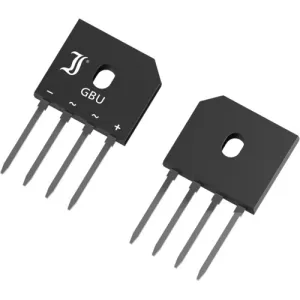

Diotec Semiconductors bridge rectifier, 70 V, 100 V (RRM), 6 A, SIL, GBU6B
Order No.: 60A912
Manufacturer: Diotec Semiconductors
per pc. 0.3927 € *
Bridge rectifier, GBU6B, LGE
Features
- Reliable, low-cost construction utilizing molded plastic technique
- Plastic material has U/L flammability classification 94V-O
- Glass passivated chip junctions
Applications
- Ideal for printed circuit board
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | THT | |
| Enclosure | SIL | |
| Input voltage | 70 V | |
| Rated current | 6 A | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
| RoHS conform | Yes |
