45431.123.211 | LEAR Corporation
Uninsulated flat plug sleeve, 6.3 x 0.8 mm, 1.5 to 2.5 mm², AWG 16 to 14, brass, tin-plated, 45431.123.211
Order No.: 07F336
EAN: 4099889618839
MPN:
45431.123.211
Unit Price (€ / pc.)
0.3927 € *
Available: 194 pcs.
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3927 €
100 pcs.
0.3332 €
500 pcs.
0.2927 €
1000 pcs.
0.2451 €
5000 pcs.
0.2154 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 45431.123.211, LEAR Corporation

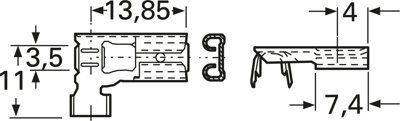

Receptacle, angled, not insulated, made of tinned brass, to DIN 46346; Conductor cross-section: 1.5 to 2.5 mm².
Technical attributes (type, mating width x mating thickness): 45431.123.211, 6.3 x 0.8 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Length | 13.85 mm | |
| Nominal size according to DIN | DIN 46346 | |
| Connection | crimp connection | |
| Suitable for | 6.3 x 0.8 mm | |
| Cable cross-section | 1.5 to 2.5 mm² | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
