45314.123.211 | LEAR Corporation
Uninsulated flat plug sleeve, 4.8 x 0.5 mm, 0.5 to 1.0 mm², AWG 22 to 18, brass, tin-plated, 45314.123.211
Order No.: 05F509
EAN: 4099889618372
MPN:
45314.123.211
Discontinued
Unit Price (€ / pc.)
0.1880 € *
Available: 2,788 pcs.
Total Price:
4.70 € *
Price list
Quantity
Price per unit*
25 pcs.
0.1880 €
50 pcs.
0.1702 €
100 pcs.
0.1404 €
500 pcs.
0.1238 €
1000 pcs.
0.0904 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 45314.123.211, LEAR Corporation
Receptacle, not insulated, Made of tinned brass.

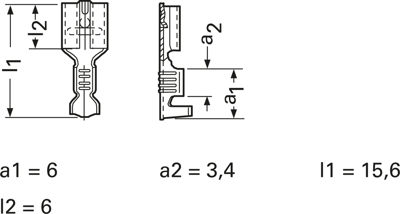

Technical attributes (type, mating width x mating thickness, for conductor cross-section): 45314.123.211, 4.8 x 0.5 mm, 0.5 to 1.0 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 4.8 x 0.5 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.5 to 1.0 mm² | |
| AWG cross-section | AWG 22 to 18 | |
| Nominal size according to DIN | DIN 46247 | |
| Length | 15.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
