35285.000.000 | LEAR Corporation
Faston plug, 6.3 x 0.8 mm, L 22 mm, insulated, straight, yellow, 4.0-6.0 mm², AWG 12-10, 35285.000.000
Order No.: 05F486
EAN: 4099889611847
MPN:
35285.000.000
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 2 Weeks
Tab terminal, 35285.000.000, LEAR Corporation
Made of tinned brass, insulated (PVC).
Mating width 6.3 mm, type 35.

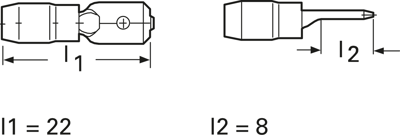

Dimensions: l1 22, l2 8.0 mm.
Technical attributes (type, mating width x mating thickness, conductor cross-section, color): 35285, 6.3 x 0.8 mm, 4.0 to 6.0 mm², yellow.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12-10 | |
| Length | 22 mm | |
| Insulation colour | yellow | |
| Plug width x plug thickness | 6.3 x 0.8 mm | |
| Design | straight | |
| Connection | crimp connection | |
| Cable cross-section | 4.0-6.0 mm² | |
| Material | brass, tin-plated | |
| Version | faston plug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
