35144.000.000 | LEAR Corporation
Faston plug, 2.8 x 0.8 mm, L 14.6 mm, insulated, straight, red, 0.5-1.0 mm², 35144.000.000
Order No.: 05F480
EAN: 4099889611816
MPN:
35144.000.000
Unit Price (€ / pc.)
0.2368 € *
Standard delivery time from the manufacturer is: 4 Weeks
Tab terminal, 35144.000.000, LEAR Corporation
Made of tinned brass, insulated (PVC).
Mating width 2.8 mm, type 35.

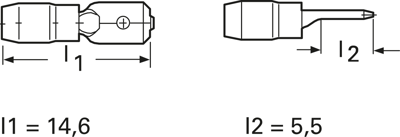

Dimensions: l1 14.6, l2 5.5 mm.
Technical attributes (type, mating width x mating thickness, conductor cross-section, color): 35144, 2.8 x 0.8 mm, 0.5 to 1.0 mm², red.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 14.6 mm | |
| Insulation colour | red | |
| Plug width x plug thickness | 2.8 x 0.8 mm | |
| Design | straight | |
| Connection | crimp connection | |
| Cable cross-section | 0.5-1.0 mm² | |
| Material | brass, tin-plated | |
| Version | faston plug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
