M4A5-32/32-10VNC | Lattice Semiconductor
CPLDS M4A5-32/32-10VNC
Order No.: 64S2611
EAN: 4099879145871
MPN:
M4A5-32/32-10VNC
Discontinued
Unit Price (€ / pc.)
7.8540 € *
Available: 1,480 pcs.
Available in 5 Days: 399 pcs. - if ordered today
Total Price:
39.27 € *
Price list
Quantity
Price per unit*
5 pcs.
7.8540 €
25 pcs.
7.5684 €
100 pcs.
7.2828 €
500 pcs.
6.9853 €
*incl. VAT plus shipping costs
Subject to prior sale

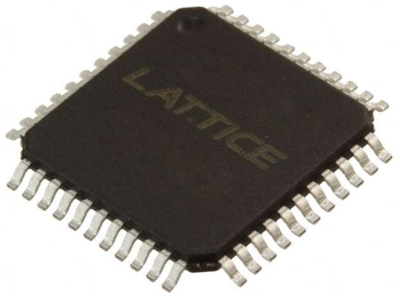

Complex programmable logic device, M4A5-32/32-10VNC, Lattice Semiconductor
The M4A5-32/32-10VNC is a high performance E2CMOS in-system programmable logic and offers an exceptionally flexible architecture and delivers a superior Complex Programmable Logic Device (CPLD) solution of easy-to-use silicon products and software tools. The overall benefits for users are a guaranteed and predictable CPLD solution, faster time-to-market, greater flexibility and lower cost.
Features
- Flexible architecture for rapid logic designs
- Flexible architecture for a wide range of design styles
- Advanced E2CMOS process provides high-performance, cost-effective solutions
- Safe for mixed supply voltage system designs
- Individual output slew rate control
Technical specifications
| Enclosure | TQFP-44 | |
| Number of I/Os | 32 | |
| max. operating temperature | 70 °C | |
| Number of macro cells | 32 | |
| Voltage | 4.75-5.25 V | |
| min. operating temperature | 0 °C | |
| Propagation Delay | 10 s | |
| Assembly | SMD |
Download
Logistics
| MSL | MSL 3 |
| Original Packaging | Tray with 160 pieces |
| Customs tariff number | 85423990 |
| Country of origin | MY |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
