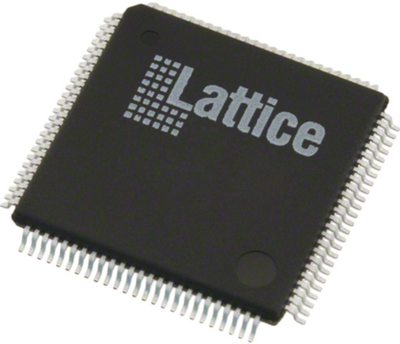

LC4128V-75TN100C | Lattice Semiconductor
Programmable logic device (PLD), 3.3 V, 64, 128
Unit Price (€ / pc.)
10.2102 € *
Available in 5 Days: 1,037 pcs. - if ordered today
Total Price:
10.21 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2102 €
10 pcs.
9.8175 €
25 pcs.
9.5914 €
90 pcs.
9.4248 €
*incl. VAT plus shipping costs
Subject to prior sale
Programmable logic device, LC4128V-75TN100C, LATTICE
The LC4128V-75TN100C is a high performance device, it offers a SuperFAST CPLD solution. This device combines high speed and low power with the flexibility needed for ease of design. With its robust global Routing pool and output routing pool, delivers excellent First-Time-Fit, timing predictability, routing, pin-out retention and density migration.
Features
- High performance
- Ease of design
- Zero power and low power
- Hot-socketing
- Programmable output slew rate
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | LQFP-100 | |
| Assembly | SMD | |
| Number of I/Os | 64 | |
| Propagation Delay | 7.5 s | |
| Voltage | 3-3.6 V | |
| Number of logical elements | 8 | |
| Number of macro cells | 128 | |
| min. operating temperature | 0 °C | |
| max. operating temperature | 90 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MY |
| Original Packaging | Tray with 90 pieces |
| MSL | MSL 3 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
