EL-USB-TC | Lascar Electronics
Data logger, temperature, USB, Lascar Electronics EL-USB-TC
Order No.: 20K312
EAN: 4099891474416
MPN:
EL-USB-TC
Unit Price (€ / pc.)
170.7650 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
170.77 € *
Price list
Quantity
Price per unit*
1 pcs.
170.7650 €
5 pcs.
139.0515 €
*incl. VAT plus shipping costs
Subject to prior sale

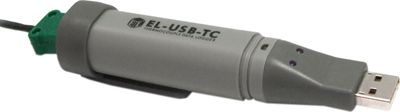

USB data loggers with thermocouple K, type Lascar EL-USB-TC.
Measuring range: thermocouple type K max. –200 to +1350 °C, type J max. –200 to +1190 °C, type T max. –200 to +390 °C. Measuring rate: 1.0 10 s, 1.0 min, 5.0 min, 30 min, 1.0 h, 6.0 h, 12 h. Number of recordings: 32510 measured values. Tolerance: typically ±1.0 % USB port, 2 programmable alarm thresholds. Operating temperatures: –10 to +40 °C. Dimensions: 118 x 27 mm, Weight: 38 g. Battery: 1/2 AA 3.6 V Lithium. Battery life: approx. 6.0 months (at +25 °C and measuring rate of 1.0 min). Supplied with battery, thermocouple type K for measuring range from 0 to +400 °C, software for Windows 98/2000/XP/Vista (32-bit).
Type: EL-USB-TC, data logger
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of measured values | 32510 | |
| Recording interval | 1s to 12h | |
| Logging Function | temperature | |
| Interfaces | USB |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85312095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
