62120270 | LAPP
Uninsulated wire end ferrule, 10 mm², 12 mm long, DIN 46228, silver, 62120270
Order No.: 33P3975
EAN: 4044773292787
MPN:
62120270
ADERENDHÜLSEN AH DIN 10/12
Unit Price (€ / pc.)
0.0678 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
0.68 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0678 €
100 pcs.
0.0571 €
500 pcs.
0.0500 €
1000 pcs.
0.0440 €
5000 pcs.
0.0393 €
*incl. VAT plus shipping costs
Subject to prior sale

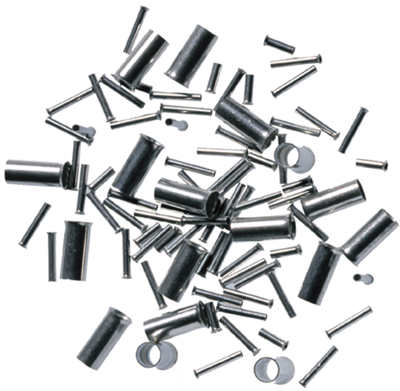

Conductor end sleeve, 62120270, LAPP
Uninsulated conductor end sleeves. Slightly funnel-shaped opening makes it easy to slip it on to the core.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 200 °C | |
| Length | 12 mm | |
| Colour | silver | |
| Isolated | No | |
| Standard number | DIN 46228 | |
| Contact material | electrolytic copper | |
| Cable cross-section | 10 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
