62120260 | LAPP
Uninsulated wire end ferrule, 6.0 mm², 10 mm long, DIN 46228, silver, 62120260
Order No.: 33P3980
EAN: 4044773293104
MPN:
62120260
ADERENDHÜLSEN AH DIN 6/10
Unit Price (€ / pc.)
0.0500 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0500 €
100 pcs.
0.0428 €
500 pcs.
0.0369 €
1000 pcs.
0.0321 €
5000 pcs.
0.0286 €
*incl. VAT plus shipping costs
Subject to prior sale

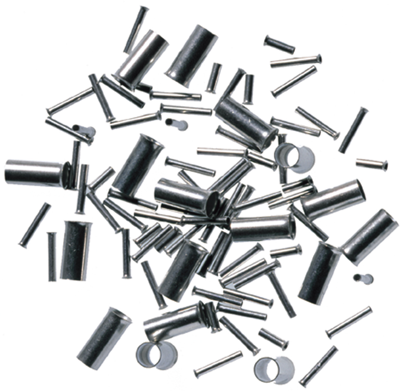

Conductor end sleeve, 62120260, LAPP
Uninsulated conductor end sleeves. Slightly funnel-shaped opening makes it easy to slip it on to the core.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 200 °C | |
| Length | 10 mm | |
| Colour | silver | |
| Isolated | No | |
| Standard number | DIN 46228 | |
| Contact material | electrolytic copper | |
| Cable cross-section | 6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
