Insulated wire end ferrule, 1.5 mm², 16 mm/8 mm long, black, 61802020
Order No.: 33P4199
EAN: 4044773207545
MPN:
61802020
ADERENDHÜLSEN AHI-TWIN 2X1,5 BK
Unit Price (€ / pc.)
0.0928 € *
Available: 505 pcs.
Total Price:
0.09 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0928 €
10 pcs.
0.0797 €
50 pcs.
0.0714 €
100 pcs.
0.0619 €
500 pcs.
0.0559 €
*incl. VAT plus shipping costs
Subject to prior sale

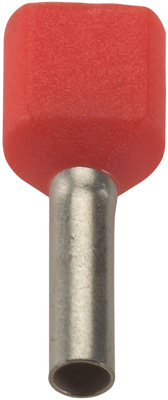

Conductor end sleeve, 61802020, LAPP

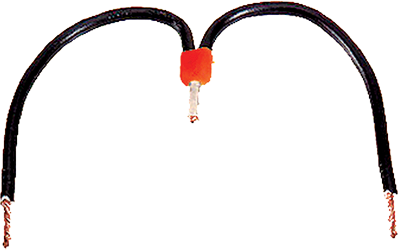

The 61802020 is a twin insulated conductor end sleeve for two strand conductors. This product has special shape of plastic collar that enables simultaneous holding of two strand conductors. Correct crimping of two conductors in a TWIN conductor end sleeve achieves a proper electrical and mechanical connection.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 16 mm | |
| Material Insulation | polypropylene | |
| Pin lenght | 8 mm | |
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Contact material | copper | |
| Colour | black | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
