61746720 | LAPP

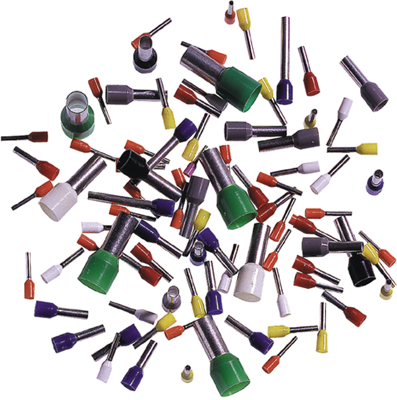

Insulated Wire end ferrule, 1.5 mm², 24.5 mm/18 mm long, DIN 46228/4, red, 61746720
Order No.: 33P4174
EAN: 4044773378412
MPN:
61746720
ADERENDHÜLSEN AHI L 1,5/18 RD
Unit Price (€ / pc.)
0.0643 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
0.06 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0643 €
10 pcs.
0.0547 €
50 pcs.
0.0488 €
100 pcs.
0.0428 €
500 pcs.
0.0393 €
*incl. VAT plus shipping costs
**Subject to prior sale
Conductor end sleeve, 61746720, LAPP
The 61746720 is a xonductor end sleeve with insulation for cabinet builders, according to DIN or German colour code, halogen-free. Funnel-shaped opening makes it easy to slip them onto the strands The conductor is permanently connected to the collar by crimping.
Applications
- Control cabinets and equipment wiring
- For cables with category 2,5 and 6 conductors
- Not suitable for solid conductors
Technical specifications
| Colour | red | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 24.5 mm | |
| Cable cross-section | 1.5 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 18 mm |
Download
Logistics
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
