61722840 | LAPP
Cable bundle hose, bundle-Ø 10 to 40 mm, PA, black, 25 m, 61722840
Order No.: 33P5789
EAN: 4044773205923
MPN:
61722840
KUNSTSTOFFWENDEL KW 10 BK
Unit Price (€ / mtr.)
2.0587 € *
Available: 175 mtr.
Cable bundle conduit, 61722840, LAPP

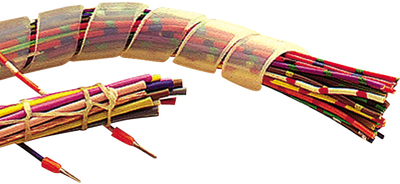

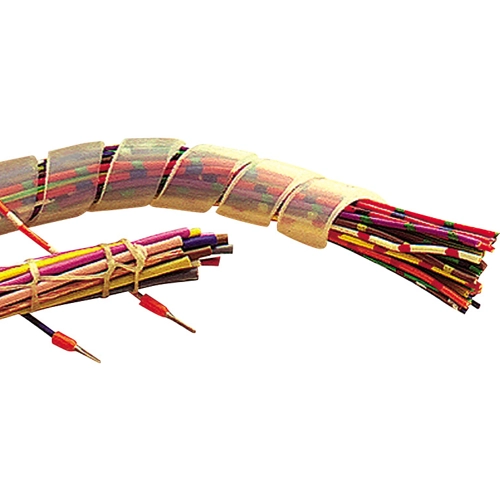

The 61722840 is a plastic coil and is suitable for a flexible bundling from cables and lines.
Features
- Good chemical resistance
- Flame-retardant
- Mechanical resistance
- UV-resistant
- Flexibility of the cables is largely preserved
- Spiral-shaped cut tube
- For time-saving cable and wire bundling
Applications
- For the manufacturing of cable harnesses with branch-offs
- For protection against mechanical stress
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 10 mm | |
| max. Bundle diameter | 40 mm | |
| Material | PA | |
| Colour | black | |
| Wall thickness | 0.8 mm | |
| Length | 25 m | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
