61600010 | LAPP
Cable bundle hose, bundle-Ø 2 to 7 mm, PE, natural, 50 m, 61600010
Order No.: 33P5795
EAN: 4044773248159
MPN:
61600010
KUNSTSTOFFWENDEL KW 2 NA
Unit Price (€ / mtr.)
0.357 € *
Available: 300 mtr.
Cable bundle conduit, 61600010, LAPP

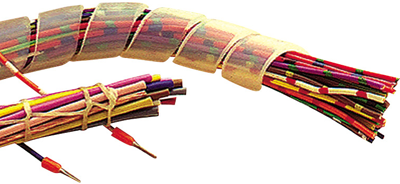

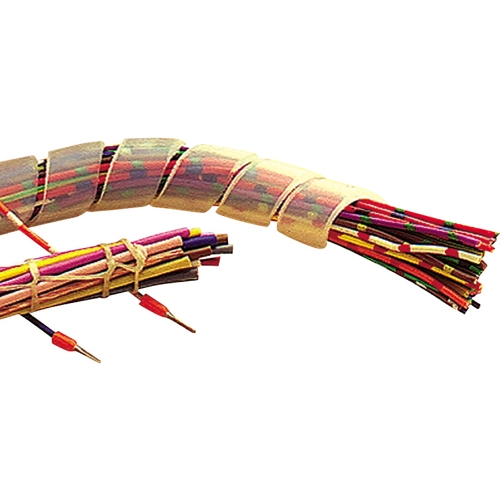

The 61600010 is a plastic coil and is suitable for a flexible bundling from cables and lines.
Features
- Good chemical resistance
- Flame-retardant
- Mechanical resistance
- UV-resistant
- Flexibility of the cables is largely preserved
- Spiral-shaped cut tube
- For time-saving cable and wire bundling
Applications
- For the manufacturing of cable harnesses with branch-offs
- For protection against mechanical stress
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. Bundle diameter | 2 mm | |
| max. Bundle diameter | 7 mm | |
| Material | PE | |
| Colour | natural | |
| Wall thickness | 0.75 mm | |
| Length | 50 m | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
