44423146 | LAPP

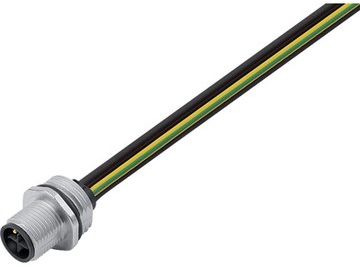

Plug, M16, 3 pole + PE, screw connection, screw locking, straight, 44423146
Order No.: 30P1270
EAN: 4044776705741
MPN:
44423146
EPIC POWER M12 G4 M16 3+PE M 0
Series: EPIC POWER M12
Unit Price (€ / pc.)
23.919 € *
Standard delivery time from the manufacturer is: On Request
Power connector, 44423146, LAPP KABEL
Features
- Pre-assembled cord
- Pollution degree: 3
- Degree of protection: IP67
- Overvoltage category: II
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Coding | S | |
| Pin number | 3 pole + PE | |
| Thread size | M16 | |
| contact surface | gold-plated | |
| Degree of protection (IP) | IP68 | |
| Contact connection | screw connection | |
| Product type | plug | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
