381166351 | LAPP

Jack, M12, 4 pole, screw connection, screw locking, straight, 381166351

Order No.: 67F9990
EAN: 4064728618615
MPN:
381166351
EPIC POWER M12F D6 4 SR1220 8-12
Series: EPIC POWER M12F

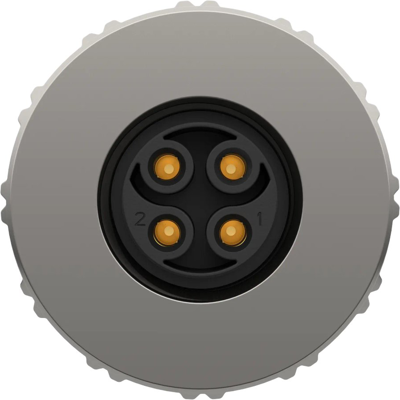

381166351 LAPP Sensor-Actuator Connectors Image 1

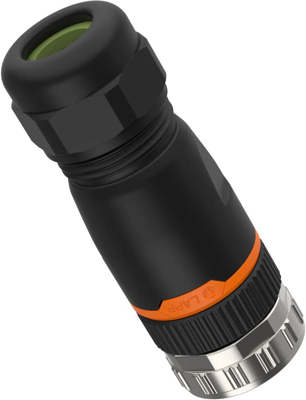

381166351 LAPP Sensor-Actuator Connectors Image 2

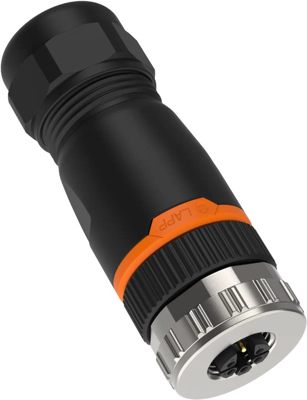

381166351 LAPP Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
11.1622 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
223.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
11.1622 €

Circular connector, 381166351, LAPP

The 381166351 circular connector with its high stability thanks to impact-resistant polyamide is suitable for supplying power to smaller devices and systems in a wide range of applications. The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.

Features

  • High power up to 16 A despite extremely space-saving design for very small devices
  • The mechanical E-coding of the connector face prevents incorrect plugging with mating connectors
  • When connected, protection class IP 67 can be achieved
  • Good oil and chemical resistance
Technical specifications
Filter Property Value
Pin number 4 pole
Degree of protection (IP) IP67
Assembly cable assembly
Coding F
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection screw connection
Thread size M12
Product type jack
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
