381166333 | LAPP

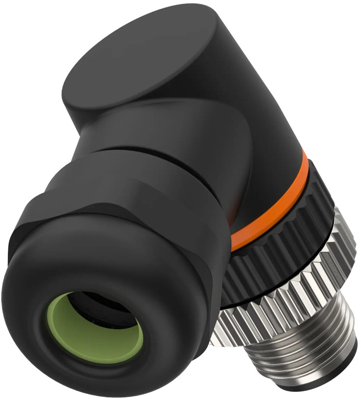

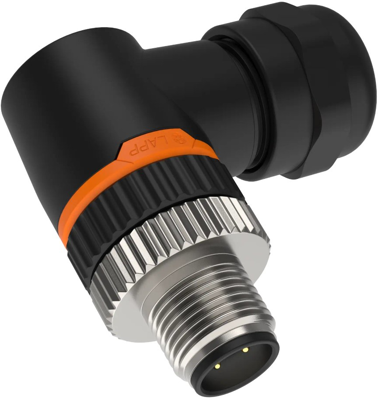

Angle plug, M12, 4 pole, screw connection, screw locking, angled, 381166333
Order No.: 67F8154
EAN: 4064728618431
MPN:
381166333
EPIC SENSOR M12A F1 4 SR1220 4-8
Series: EPIC SENSOR M12A
Unit Price (€ / pc.)
7.7707 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
7.77 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7707 €
20 pcs.
7.1281 €
60 pcs.
6.6997 €
100 pcs.
6.2594 €
200 pcs.
5.8310 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, 381166333, LAPP
The 381166333 circular connector has a high stability thanks to impact-resistant polyamide. The service-friendly screw connection makes assembly possible without a special tool, and is suitable for connections which need to be detached again.
Features
- When connected, protection class IP 67 can be achieved
- Good oil and chemical resistance
Applications
- Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range
- Typical application areas are sensors and actuators at field level
Technical specifications

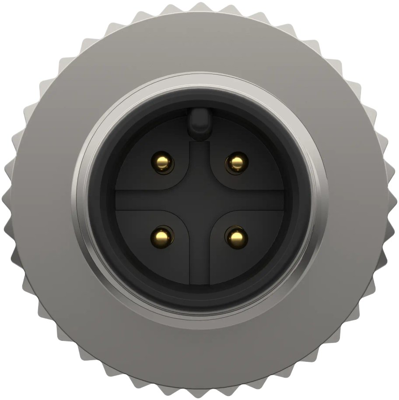

| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Contact connection | screw connection | |
| Product type | plug | |
| Coding | A | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
