381166322 | LAPP

Plug, M12, 12 pole, solder connection, screw locking, straight, 381166322

Order No.: 67F8161
EAN: 4064728618325
MPN:
381166322
EPIC SENSOR M12A F6 12 SL1220 4-8

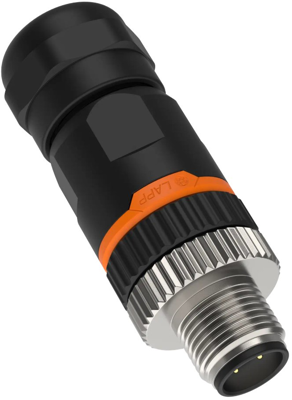

381166322 LAPP Sensor-Actuator Connectors Image 1

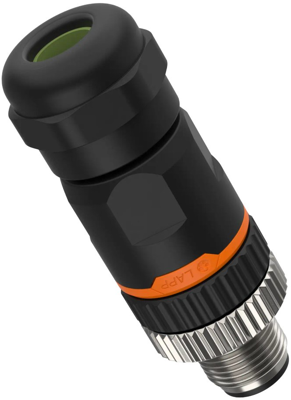

381166322 LAPP Sensor-Actuator Connectors Image 2

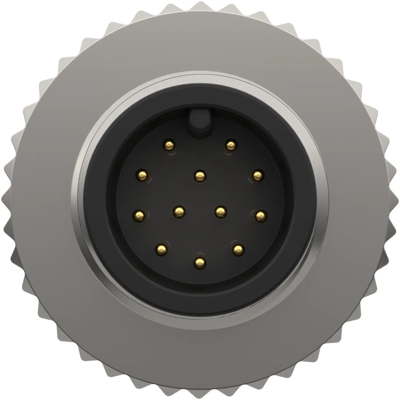

381166322 LAPP Sensor-Actuator Connectors Image 3
Image may differ
Unit Price (€ / pc.)
10.5553 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.56 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5553 €
20 pcs.
9.6628 €
60 pcs.
9.0916 €
100 pcs.
8.4966 €
200 pcs.
7.9135 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, 381166322, LAPP

The 381166322 circular connector has a high stability thanks to impact-resistant polyamide. Solder termination is easy to implement, and creates a plug connection that is resistant to shock and vibrations.

Features

  • When connected, protection class IP 67 can be achieved
  • Good oil and chemical resistance

Applications

  • Can be used universally at machine interfaces for many applications for data and signal transmission in the low-frequency range
  • Typical application areas are sensors and actuators at field level
Technical specifications
Filter Property Value
Pin number 12 pole
Type of locking screw locking
Contact connection solder connection
Product type plug
Coding A
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
