75009637 | LAPP

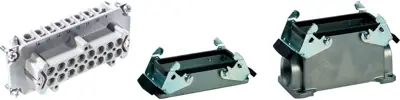

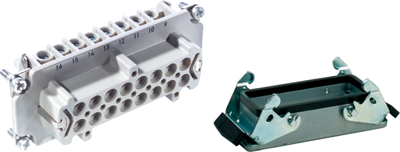

Bulkhead housing kit, size H-B 6, 6 pole + PE , IP65, 75009637
Order No.: 46F770
EAN: 4044774419329
MPN:
75009637
EPIC KIT H-BE 6 BS AG
Unit Price (€ / pc.)
34.0697 € *
Standard delivery time from the manufacturer is: On Request
Bulkhead Housing Kit, 75009637, LAPP KABEL
Features
- Automation
- Mechanical resistance
- Robust
- Waterproof
- Included: flat gasket
Applications
- Industrial machinery and plant engineering
- Control engineering
- Plastics industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable Outlet | M20, straight | |
| Contact connection | screw connection | |
| Shell size | H-B 6 | |
| Shell Material | aluminum alloy | |
| PE contact | Yes | |
| Degree of protection (IP) | IP65 | |
| Pin number | 6 pole | |
| Version | bulkhead housing kit | |
| Type of locking | longitudinal bow locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
