75009626 | LAPP

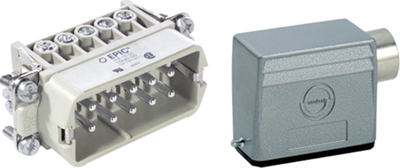

Connector kit, size H-A 10, 10 pole + PE , IP65, 75009626
Unit Price (€ / pc.)
32.7131 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
32.71 € *
Price list
Quantity
Price per unit*
1 pcs.
32.7131 €
10 pcs.
29.4644 €
25 pcs.
26.5013 €
*incl. VAT plus shipping costs
Subject to prior sale
Connector Kit, 75009626, LAPP KABEL
Features
- Fast assembly time
- Mechanical resistance
- Robust
- Waterproof
Applications
- Industrial machinery and plant engineering
- Machine and equipment manufacturing
- Control engineering
- Electronic laboratory
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | longitudinal bow locking | |
| Shell size | H-A 10 | |
| Pin number | 10 pole | |
| PE contact | Yes | |
| Degree of protection (IP) | IP65 | |
| Shell Material | zinc die casting | |
| Contact connection | screw connection | |
| Cable Outlet | M20, angled | |
| Version | connector kit |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
