75009610 | LAPP

Connector kit, size H-A 3, 3 pole + PE , IP65, 75009610

Order No.: 46F724
EAN: 4044774421605
MPN:
75009610
EPIC KIT H-A 3 BS MAGSV M20
Series: EPIC H-A
75009610 LAPP Rectangular Connector Sets

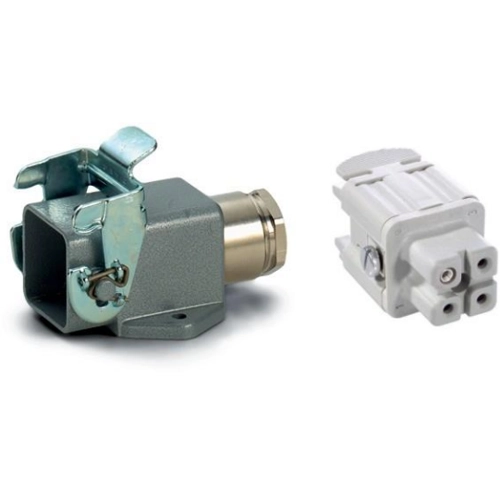

Image may differ
Unit Price (€ / pc.)
22.4672 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
22.47 € *
Price list
Quantity
Price per unit*
1 pcs.
22.4672 €
5 pcs.
20.7774 €
10 pcs.
19.0876 €
25 pcs.
17.9690 €
50 pcs.
16.8504 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector kit, 75009610, LAPP

Features

  • Easy to service, with screw termination up to 2.5 mm² wire cross section
  • The small H-A 3 is used whenever there is minimal space
  • Easy cable connection with strait cable entry in the contacts
  • Optimally matched components
  • Reduced ordering effort
Technical specifications
Filter Property Value
Pin number 3 pole
Shell Material zinc die casting
Degree of protection (IP) IP65
Version connector kit
Shell size H-A 3
Type of locking longitudinal bow locking
Contact connection screw connection
Cable Outlet M20, angled
PE contact Yes
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
