61806515 | LAPP
Protective hose, slotted, inside Ø 9.9 mm, outside Ø 13 mm, PP, black, 61806515
Order No.: 33P3720
EAN: 4044773638530
MPN:
61806515
SILVYN SINUS PP 9,9x13,0 BK
Series: SILVYN SINUS PP
Unit Price (€ / mtr.)
1.3447 € *
Standard delivery time from the manufacturer is: On Request

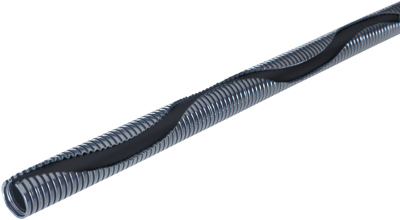

Slitted conduit, 61806515, LAPP
The 61806515 is a parallel corrugated, sinusoidal slitted conduit that remains closed even under torsional movement. The conduit can be used for the subsequent assembling on installed cables.
Features
- High mechanical resistant
- High chemical resistant
- High heat resistance
- Low-temperature impact strength
- UV-Resistant
Applications
- Solar applications
- Shipbuilding
- Mechanical engineering
- Electrical industry
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Flame-retardant | Yes | |
| Material | PP | |
| max. operating temperature | 130 °C | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Outer diameter | 13 mm | |
| Inner diameter | 9.9 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
