61804633 | LAPP

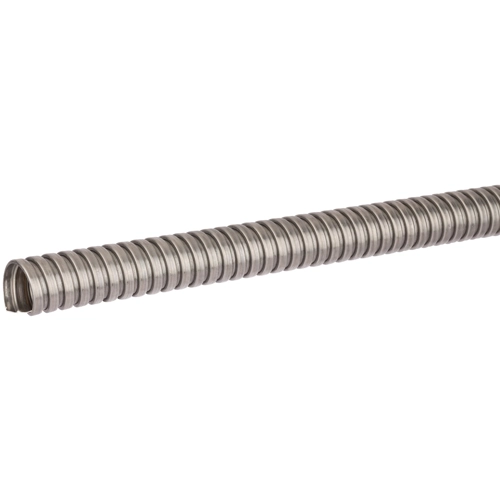

Spiral protective hose, inside Ø 13 mm, outside Ø 16 mm, BR 40 mm, steel, metal, 61804633

Order No.: 33P3726
EAN: 4044777806300
MPN:
61804633
SILVYN SSU 16 / 13,0X16,0 25M
Series: SILVYN SSU
61804633 LAPP Protective Tubes
Image may differ
Unit Price (€ / mtr.)
3.0226 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
75.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 mtr.
3.0226 €

Metal steel conduit, 61804633, LAPP

The 61804633 is a helically-wound metal protective conduit with interlocked profile.

Features

  • Inherent low fire hazard
  • High-tensile
  • For high mechanical stress
  • Heat-resistant
  • Mechanical resistance
  • Robust
  • Temperature-resistant

Applications

  • Measuring technology
  • Plant engineering
Technical specifications
Filter Property Value
Colour metal
min. operating temperature -100 °C
max. operating temperature 300 °C
Outer diameter 16 mm
Material steel
Flame-retardant Yes
Inner diameter 13 mm
Bending radius 40 mm
Nominal width 16 mm
Logistics
Property Value
Customs tariff number 83071000
Country of origin GB
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
