61803970 | LAPP

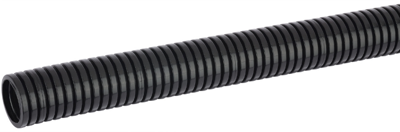

Protective hose, inside Ø 28.3 mm, outside Ø 34.7 mm, BR 50 mm, PA, black, 61803970

Order No.: 33P3898
EAN: 4044777578177
MPN:
61803970
FIPLOCK HPDF 29/28,3X34,7 BK 50M
Series: FIPLOCK PA12
61803970 LAPP Protective Tubes
Image may differ
Unit Price (€ / mtr.)
24.5616 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1,228.08 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 mtr.
24.5616 €

Protective sleeve, 61803970, LAPP

The cable protection conduit FIPLOCK HPDF is made of PA12 with highly flame retarded that features and can be used for cable protection applications where low fire hazard is mandatory. In addition is the protection conduit self-extinguishing has a low smoke characteristics and is due to his mechanical properties the conduit can be used for technical applications such like rolling stock and public transport equipment.

Features

  • Suitable for outdoor use
  • Good chemical resistance
  • Flame-retardant
  • Halogen-free
  • Cold-resistant
  • Assembly time
  • Low weight
  • Oil-resistant
  • Waterproof
Technical specifications
Filter Property Value
Colour black
min. operating temperature -45 °C
max. operating temperature 105 °C
Outer diameter 34.7 mm
Material PA
Flame-retardant Yes
Inner diameter 28.3 mm
Bending radius 50 mm
Nominal width 29 mm
Logistics
Property Value
Customs tariff number 39173200
Country of origin QU
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
