61803969 | LAPP

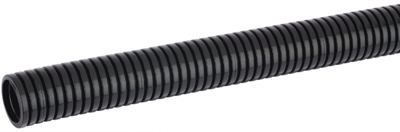

Protective hose, inside Ø 22 mm, outside Ø 28.5 mm, BR 40 mm, PA, black, 61803969
Order No.: 33P3897
EAN: 4044777578160
MPN:
61803969
FIPLOCK HPDF 23/22,0X28,5 BK 50M
Series: FIPLOCK PA12
Unit Price (€ / mtr.)
19.0043 € *
Standard delivery time from the manufacturer is: 6 Weeks
Protective sleeve, 61803969, LAPP
The cable protection conduit FIPLOCK HPDF is made of PA12 with highly flame retarded that features and can be used for cable protection applications where low fire hazard is mandatory. In addition is the protection conduit self-extinguishing has a low smoke characteristics and is due to his mechanical properties the conduit can be used for technical applications such like rolling stock and public transport equipment.
Features
- Suitable for outdoor use
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Assembly time
- Low weight
- Oil-resistant
- Waterproof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Flame-retardant | Yes | |
| Material | PA | |
| max. operating temperature | 105 °C | |
| Nominal width | 23 mm | |
| Bending radius | 40 mm | |
| min. operating temperature | -45 °C | |
| Colour | black | |
| Outer diameter | 28.5 mm | |
| Inner diameter | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | QU |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
