61803951 | LAPP
Protective hose, slotted, inside Ø 43.1 mm, outside Ø 54.2 mm, BR 140 mm, PA, black, 61803951
Order No.: 33P6055
EAN: 4044777577989
MPN:
61803951
FIPSPLIT 2PAF 45 / 43,1X54,2 BK 25M
Series: FIPLOCK PA6 - SPLIT
Unit Price (€ / mtr.)
47.8261 € *
Standard delivery time from the manufacturer is: 6 Weeks
Protective hoses, 61803951, LAPP

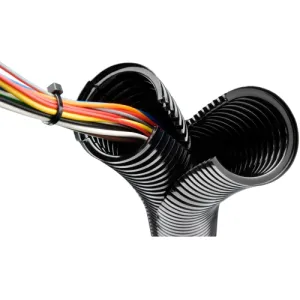

The 61803951 is a cable protection conduit made of polyamide 6 for retrofit application. The Protection conduit is self-extinguishing and is due to his mechanical features especially suitable for technical requirements, special for train applications and public transporting. The flexible conduit design enables small bending radii and is ideally suited for space-saving installations where space is limited in dry and damp interiors, as well as for outdoor applications.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Assembly time
- Low weight
- Oil-resistant
- UV-resistant
- Waterproof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Inner diameter | 43.1 mm | |
| Outer diameter | 54.2 mm | |
| Nominal width | 45 mm | |
| Bending radius | 140 mm | |
| Material | PA | |
| Colour | black | |
| Flame-retardant | Yes | |
| min. operating temperature | -45 °C | |
| max. operating temperature | 120 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
