61803924 | LAPP

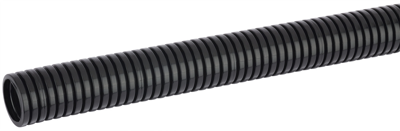

Protective hose, inside Ø 22 mm, outside Ø 28.4 mm, BR 40 mm, PA, gray, 61803924

Order No.: 33P3856
EAN: 4044777577712
MPN:
61803924
FIPLOCK FPAF 23/22,0X28,4 GY 50M
Series: FIPLOCK PA6
61803924 LAPP Protective Tubes
Image may differ
Unit Price (€ / mtr.)
9.7342 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
486.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 mtr.
9.7342 €

Protective sleeve, 61803924, LAPP

The 61803924 is made from highly flame retarded specially modified Polyamide 6. It is suitable for cable protection applications where low fire hazard is mandatory. The excellent self-extinguishing and low smoke generation characteristics are main criterions for the selection of these products. With it`s good complementary mechanical performances this conduit suits technically high demanding applications such like rolling stock and public transport equipment in general.

Features

  • Good chemical resistance
  • Flame-retardant
  • Halogen-free
  • Cold-resistant
  • Assembly time
  • Low weight
  • Oil-resistant
  • UV-resistant
  • Waterproof
Technical specifications
Filter Property Value
Colour gray
min. operating temperature -45 °C
max. operating temperature 120 °C
Outer diameter 28.4 mm
Material PA
Flame-retardant Yes
Inner diameter 22 mm
Bending radius 40 mm
Nominal width 23 mm
Logistics
Property Value
Customs tariff number 39173200
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
