76083510 | LAPP

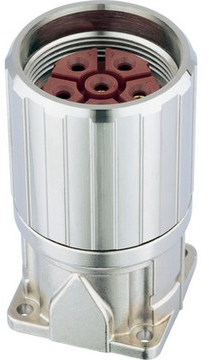

Surface mount socket, 6 pole, crimp connection, straight, 76083510
Order No.: 30P1128
EAN: 4044773622799
MPN:
76083510
EPIC POWER LS1 A6 5+PE (20)
Series: EPIC POWER LS1
Unit Price (€ / pc.)
16.6481 € *
Standard delivery time from the manufacturer is: On Request
Circular connector, 76083510, Lapp Kabel
Circular connector for servo motors and power supply
Features
- Mechanical and plant engineering
- Wind energy
- Good chemical resistance
- Corrosion-resistant
- Maximum vibration protection
- Mechanical resistance
- Assembly time
- Space requirement
- Robust
Applications
- Plant engineering
- Servo drives and servo assemblies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting | |
| Orientation | straight | |
| Assembly | panel mounting | |
| Pin number | 6 pole | |
| Version | surface mount socket | |
| Cable cross-section | 0.5-2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
