75009709 | LAPP

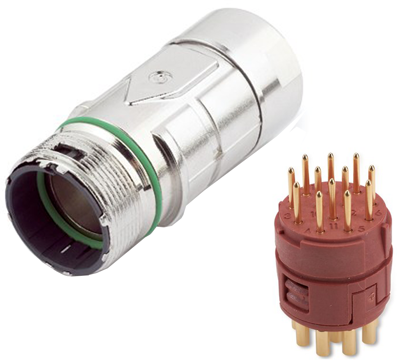

Plug, 17 pole, solder cup, screw locking, straight, 75009709
Order No.: 67F6254
EAN: 4044774420691
MPN:
75009709
EPIC KIT M23 F6 17-POL
Unit Price (€ / pc.)
48.6115 € *
Standard delivery time from the manufacturer is: On Request
Circular connector kits, type LAPP EPIC CIRCON M23.
with safe protection against vibration, corrosion and EMC radiation, integrated labeling field, clearly visible and perceptible mating; Contacts: solder terminals. Rated voltage: 100/50 V. Rated surge voltage: 1.5/0.8 kV. Rated current: 7.0 A. Contact resistance: < 4.0 mohm. Cable clamping range: 7.0 to 13.5 mm. Terminal cross section: up to 1.0 mm². Contact material: gold-plated brass. Degree of soiling: 3. Operating temperatures: - 25 to +125 °C. Certifications: VDE, UL, CSA.
17-pole.
Technical attributes (type, version): 75009709, male plug
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Orientation | straight | |
| Shell Material | zinc die casting | |
| Pin number | 17 pole | |
| Cable cross-section | 1.0 mm² | |
| Contact connection | solder cup | |
| contact surface | gold-plated | |
| Assembly | cable assembly | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
